The numerical method UNTRIM2 is closely related with its predecessors UNTRIM and UNTRIM2007. UNTRIM2 is a semi-implicit finite difference (-volume) model, based on the three-dimensional shallow water equations as well as on the three-dimensional transport equation for salt, heat, dissolved matter and suspended sediments. The essential, main and revolutionary difference, is due to the sub grid technology used to discretise bathymetry with much finer resolution compared to the computational grid.
Sub Grid Technology
Computational Grid and Sub Grid
- Computational Grid:
- UNTRIM2 is able to work on unstructured orthogonal grids (UOG). The modelling domain is covered by a grid consisting of a set of non-overlapping convex polygons, usually either triangles or quadrilaterals. The grid is said to be an unstructured orthogonal grid if within each polygon a point (hereafter called a center) can be identified in such a way that the segment joining the center of two adjacent polygons and the side shared by the two polygons, have a non-empty intersection and are orthogonal to each other.
- Sub Grid:
- Model bathymetry is defined with sub grid resolution. Sub grid resolution can be much finer compared to the resolution of the computational grid.
- Water volume within a polygon may be non-linearily dependent on water level.
- Flow area along edges may also become non-linearily dependent on water level.

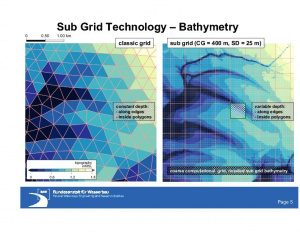

In Figure Tidal Flats Elbe Estuary the discrete model bathymetry for the classical grid (left) as well as for the case using sub grid technology (right) is displayed. In the classical case, e.g. for a triangular unstructured grid, depth is constant within polygons as well as along edges.With use of sub grid technology many more details of bathymetry become visible. This is mainly due to the fact, that depth is allowed to vary within a polygon as well as along edges. Therefore, also small topographic structures can be represented in the model bathymetry.
Water level as well as current velocity are computed on the (coarse) computational grid only, but not on the (much finer) sub grid. Typically water level corresponds to the mean value within a computational polygon. And current velocity is equivalent to the mean velocity for the respective actual flow area along an edge.
In Figure Synoptic current velocity for a tidal flat area in the Elbe Estuary, computed current velocity for the classical grid is shown on the left, whereas results obtained for a grid using sub grid bathymetry are displayed on the right. In the classical case any polygon is either completely wet or dry. In the sub grid case instead, any polygon, and also any edge, may become also partially wet. This feature is mainly responsible for the quasi-natural flooding obtained with sub grid technology, where water is enabled to penetrate more rapidly along the deep tidal channels.
- Bathymetry can be prescribed independent of computational grid resolution.
- Accuracy is, in principle, only limited due to measurement errors of bathymetric data.
- For any water water level, modelled water volume is very close to the natural water volume. Similar is true for the flow area.
- Dry and wet areas can be prescribed in great detail.
- Comparable accuracy with respect to bathymetry can be achieved at much lower CPU cost using sub grid technology, compared to a full discretisation of bathymetry with the classical grid approach.
- reynolds-averaged Navier-Stokes equations (RANS)
- local acceleration (inertia)
- advective acceleration
- Coriolis acceleration
- barotropic pressure gradient
- baroclinic pressure gradient
- hydrostatic or non-hydrostatic pressure
- horizontal turbulent viscosity
- vertical turbulent viscosity influenced by density stratification
- bottom friction
- wind friction
- sources and sinks
- horizontal acceleration due to wave effects (by means of radiation stress)
- transport of tracers
- local rate of change of concentration
- advective rate of change of concentration
- optional flux limiter : Minmod, van Leer or Superbee
- horizontal turbulent diffusivity
- vertical turbulent diffusivity influenced by density stratification
- settling of particles, deposition and erosion (for suspended sediments)
- heat-transfer to/from the atmosphere and to/from the bottom
- sources and sinks
- sinks with immediate return inflow at a different location, with optional modification of inflow-temperature as well as -salinity
- water level elevation at the free surface
- current velocity
- tracer concentration (e.g. salinity, temperature, suspended sediments)
- hydrodynamic pressure
Note: when UNTRIM2 is used in two-dimensional (depth-integrated) mode, results correspond to the depth-averaged values for the above-mentioned quantities.
